    IEC60529 EN6052 Environmental Test Chambers PC Link RS232 Interface

    Ask Lasest Price
    Brand Name : KingPo
    Certification : ISO 17025 Calibration certificate
    Price : To be quoted
    Delivery Time : 30 working days
    Payment Terms : 100% TT in advance
    Supply Ability : 3 units per month
    • Product Details
    • Company Profile

    IEC60529 EN6052 Environmental Test Chambers PC Link RS232 Interface

    IEC60529 EN6052 Environmental Test Chambers PC Link RS232 Interface

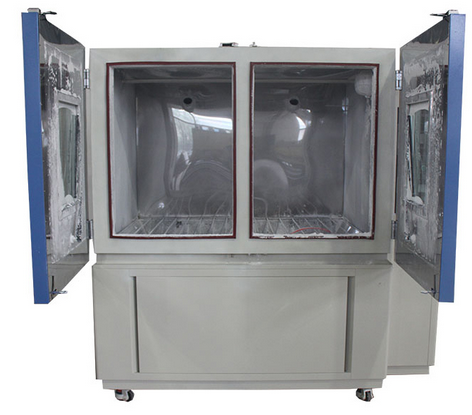

    JIS-D0207-F2 Sand Dust Test Chamber


    1. Description of JIS-D0207-F2 Sand Dust Test Chamber


    Standard:IEC60529/EN 6052


    Function:These test chambers are used for evaluating the effects of dust-filled environments in order to validate product seal integrity.


    Application:Dust test chambers are utilized in automotive,electrotechnical products,materials,coatings,solar energy,etc.


    2. Features of JIS-D0207-F2 Sand Dust Test Chamber


    • Dust re-cycle blowing by circulating pump.

    • Dust collection section is located on bottom of test chamber.

    • A heater fixed into test chamber to keep dust dry.

    • A viewing window with a manually controlled wiper.

    • Programmable color display touch screen controller

    • A stainless steel shelf for placing test specimens.

    • Test chamber internal illumination

    • Vacuum system for specimen

    • Bottom install 4 castors for ease moving, andwith brakes function

    • Safety protection

    • Easy to operate

    • Standard: IEC60529


    3. Technical Parameter of JIS-D0207-F2 Sand Dust Test Chamber

    Model

    JIS-800

    JIS-1000

    JIS-1500

    JIS-2000

    Internal dimensions (mm)

    800*1000*1000

    1000*1000*1000

    1000*1500*1000

    1200*1800*1200

    Overall dimensions (mm)

    1040*1450*1960

    1200*1450*1960

    1250*1900*1960

    1500*2200*2160

    Temperature range

    Ambient to +50℃

    Normal wire diameter

    50um

    Normal width of a gap between wire

    75um

    The Talcum powder amount

    2kg ~ 4kg/m3

    Fight time

    0 ~ 99H59M

    Fan cycle time

    0 ~ 99H59M

    Specimen power outlet

    Dust-proof socket AC220V 16A

    Controller

    programmable color display touch screen controller

    PC Link, RS232 interface

    Heating system

    Independent Nichrome electronic heating system

    Exterior material

    Steel Plate with protective coating

    Interior material

    SUS304 stainless steel

    Power supply

    380V 50HZ


    JIS-D0207-F2 Sand Dust Test Chamber 0


    4.Packaging

    JIS-D0207-F2 Sand Dust Test Chamber 1
