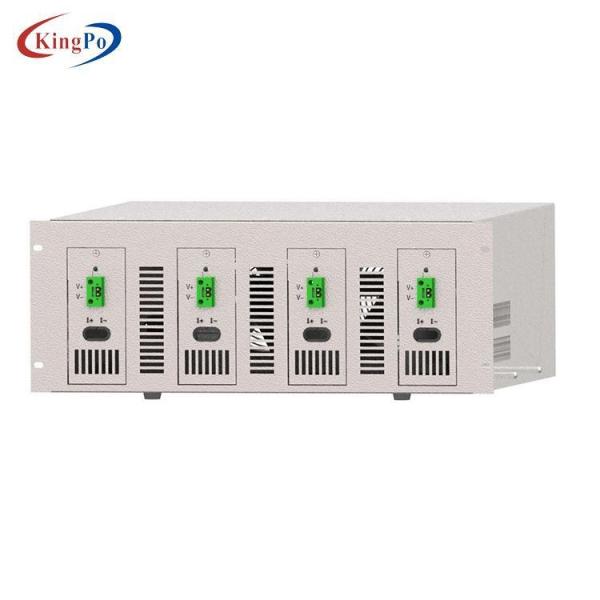

72V 5A 4ch EV Battery Testing Equipment Charge And Discharge System
72V5A Battery Charge and Discharge system
72V 5A 4ch Battery Testing Machine High Precision And Energy Saving Feedback Type Battery Capacity Tester
Product feature:
· Modular design, a single point of control technology, easy expansion, production to maintain high efficiency;
· Channel segregation and parallel technology convenient free combination applied to various occasions tests;
· Charge and discharge power factor of 0.98, charge and discharge efficiency of 70 (Max. 80%)
· A variety of charge and discharge protection function, reduce the battery production accidents;
· Discharge energy supply other charging energy channels or giving back to the power grid, fever of equipment cost greatly reduce the energy consumption;
· Equipment accuracy better than 0.1%, data recording time / 1 second, software powerful function, friendly man-machine interface;
· Four wire interface, realize the wide range of voltage, current adjustment, suitable for all kinds of batteries;
Equipment description
BTS EC5 series battery points is designed primarily for power batteries, the tester system can meet the demand of power batteries of various performance tests.The device has the characteristics of high power, high precision, high performance, for10-72 V (voltage), etc. Various specifications between 0.3-5A battery charging and discharging test and points.
BTS EC525 -4 – A
Design version
Channel number
Current range
Voltage range
Energy feedback form
Battery test system
Service and support
1,Expiration period 1 year free maintenance, upgrading and training, life-long maintenance.
2,Shelf life after the maintenance charge of raw materials costs, lifetime free software upgrade;
3,The early stage of the equipment debugging and acceptance in Shenzhen, warranty period 48 h to provide maintenance services.
|
|
