Hardened Steel IEC Test Equipment IEC 60884-1 Plug Pin Force Verification Tester

Test plugs material:Hardened steel

Test plugs roughness:< 0.8mm.

Standard:IEC 60884-1 Fig 18 and Fig 19

Product details:

This plug pin force verification tester is designed to meet the exacting requirements of major international standards such as IEC 60884-1 Fig 18 and Fig 19. It is used to test whether the maximum force of pulling the plug from the socket and the minimum force of pulling the single plug pin from the plug bush is in the range of the standard required. The clamping system is easy to operate.

Technical parameters:

1, It is equipped with 10A ambipolar plug ,the three pole plug of 10A and 16A and the testing standard plug pin of 10A,16A.

2, It is also equipped with a set of weight and a set of clamping system.

The top plate swivels up from a horizontal position to a vertical orientation and the clamping device can be rotated in the top plate. These features allow the device to be set up in many different configurations to meet different standard requirements. Standard plugs and weights are supplied to perform testing on sockets rated up to 16A.

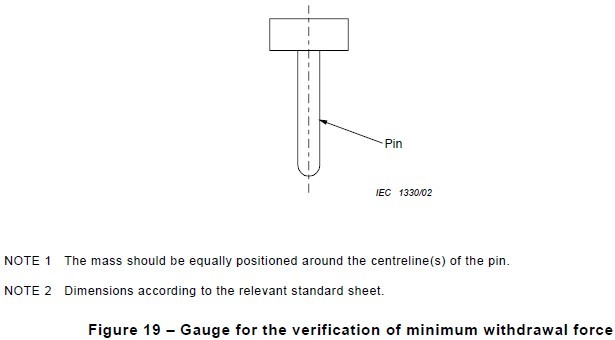

Pin gauges and the appropriate weights for testing minimum withdrawal force are sold separately. The required dimension of the pin gauge needs to be specified by the customer.

Test plugs made from hardened steel with roughness not exceeding 0.8mm.

Top plate pivots from horizontal to vertical.

Kingpo Technology Development Limited is a pioneer and leader of global safety testing equipment manufacturer.We offer one-stop service for worldwide labs from R&D,testing,production to after-sales service.We dedicate ourselves in achieving optimal production quality for our customers,reduce cost and enhance enterprise’s international competitiveness.

Kingpo is accredited by International Electrotechnical Commission(IEC) and becomes a nominated supplier and is officially issued a CBTL certificate.We are now among the world’s leading laboratory testing equipment manufacturer to produce the highest level and more standard testing equipment for global Electrotechnics labs becoming nominated supplier of NEMKO,UL,PHILIPS,CTK,CVC(Vkan Certification & Testing Co.,Ltd),Dongguan Quality Testing,China Household Electric Appliance Research Institute,Russia National Standard Institute,Belarus National Standard Institute,Korea National Standard Institute,etc.Lamp cap gauges and testing equipments produced by Kingpo,which are calibrated by CNAS and ilac-MRA ,have a high international reputation.

Kingpo aims at manufacturing world class testing equipment for Chinese labs,establishing an independent R&D center and introducing foreign state-of-the-art technology and international high-tech talents.Adopting a creative design concept,taking sensor data acquisition as forerunner,computer control technology as lead,imported transmission device with high accuracy and low noises,we have developed more than one hundred and sixty products.
