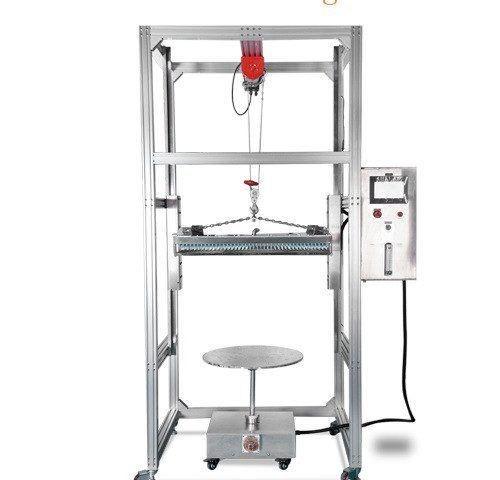

1000x1000mm Ingress Protection Test Equipment IPX1 IPX2 Dripping Box
1000 x 1000mm IPX1X2 Dripping Box Test Device
Product Details
The drip box test is one of several methods used to test the water protection capabilities of enclosures for electronic items that are expected to be exposed to rain or water spray.
This test is used to meet the requirements of IPX1 and IPX2 in IEC60529. The drip box test subjects an enclosure to vertically falling drop lets much as a product might see during rain. The test has two parts. The first has the specimen sit in the orientation of its intended use.
The second has the specimen tilted 15° from vertical in four directions to simulate a blowing rain. This second test is also done with a higher flow rate of drips.
This test device is to verify Protection against Vertically Falling
Water Drops. It is designed and manufactured in accordance with the
standard requirement of IEC60529 clause IPX1 and IPX2
The KP-IPX12B Drip Box Tester is designed to meet the requirements of IEC 60529. The tester can accommodate one of three different size drip boxes – 500* 500 mm,800* 800 mm, or 1000* 1000 mm.The flow rate of drips is set and monitored by a user friendly touch screen controller that sets the water pressure to the drip box. The drip box and the water system is fully enclosed and filtered to minimize clogging of any nozzles.
The instrument is supplied with a specimen turntable that rotates at 1 rpm. The base of the turntable is 500 mm high. The turntable can be wheeled in and out from under the drip box for specimen loading and unloading. The height of the box is electronically adjustable up to a height of 2500 mm or 2000 mm above the base of the turntable. Test duration is 10 minutes for IPX1 and 2.5 minutes for each angle adjustment of IPX2. The time of test can be set on the controller so the test stops automatically.
The KP-IPX12B Drip Box Tester Features
—Choice of three drip box sizes (can make different size according to request)
—Stainless steel nozzles and brass base removable for cleaning or replacing
—Under nozzle equipped with stainless steel mesh, safety prevents operator head accidentally touch needle injury
—Automatic air pressure cleaning nozzle and dry function, to avoid blocking nozzle.
—Drip flow rate precisely controlled by flow meter with the regulator periodically
—Drip box height electronically adjustable and fall safety device
—Filter can remove impurities from the water, filter cartridge can be replaced
—Motorized turntable connected to instrument controller
—Turntable tiltsto 15°
—Turntable electrical part of the whole seal to prevent leakage of water
—Stainless steel turntable with easy height adjustment
—Turntableis equipped with waterproof; the universal adaptor can be used in the sample charged test;
—Turntable has four wheels with brake activity, convenient mobile and fixed.
—Machine shelf material is aluminum and stainless steel.
No. | Item | Parameter | |
1 | Model | KP-IPX12A-800 | KP-IPX12A-1000 |
2 | Drip Box Size | 800mm x 800mm(or other size) | 1000 x 1000mm(or other size) |
3 | Dimensions | L1050×D1150×H2600 mm | L1250 x D1350 x H2600mm |
4 | Turntable Diameter | ￠500 mm | ￠600 mm |
5 | Nozzle | ￠0.4mm | ￠0.4mm |
6 | Nozzle hole distance | 20 x 20 mm | 20 x 20 mm |
7 | Drip Capacity | 1-5mm/Min(±0.5mm/min) | 1-5mm/Min(±0.5mm/min) |
8 | Adjustment method | Automatic or Manual | Automatic or Manual |
9 | Drip Box Travel | 1000mm-1800mm can be adjustable | 1000mm-1800mm can be adjustable |
10 | Turntable Max Loading Weight | 50 kg | 65 kg |
11 | Rotation Speed | 1 r/min | 1 r/min |
12 | Angle | 0° or 15° | 0° or 15° |
13 | Turntable Height | 300mm | 300mm |
14 | Test time | 0-999 min | 0-999 min |
15 | Protection | Leakage, water shortage, short circuit | Leakage, water shortage, short circuit |
17 | Power | 250V or 110V,1KW | 250V or 110V,1KW |
|
|
