IEC 60529 Sand Dust Test Chamber Environmental Test Equipment
IEC 60529 Sand Dust Test Chamber
Product information:
The sand and dust test chamber is designed and manufactured according to IEC60529-2001 < Degrees of protection provided by enclosure (IP code)> Fig 2, IEC60598-1-2008 and etc. It artificially simulates the dust environment to test the dust-proof ability of the test samples.
The test device is suitable for electrical products’ sand and dust
test of first characteristic numeral 5 and 6 (IPX5 and IPX6). It is
used to test sealing parts and enclosure’s sand and dust resistance
capacity of the electrical and electronic products, car and
motorcycles spare parts and seals. In order to detect the use,
storage, transport performance of the electrical and electronic
products, car and motorcycles spare parts and seals under the sand
and dust environment.
The chamber can provide a non-laminar flow of dust-loaded
vertically circulating air, can be timed controlled; also be
equipped with a vacuum pump which can vacuum the test sample, the
exhaust volume and pressure can be adjusted; in addition, the
inside chamber is configured with a airflow temperature control
device, to ensure that the test is under standard environmental
conditions.
The test equipment uses intelligent and humanized PLC control
system, the inner of the test equipment is made of high quality
SUS304 stainless steel, the enclosure is A3 plate electrostatic
spraying. And it is also having large observation window and manual
wiper device. The security protection is good.
Technical parameters:
Working size(mm) | L1000*W1000*H1000 | |
Outer size (mm) | L1610*W1250*H1950 | |
Parameters | Temperature range | Room temperature |
Test dust | dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm. | |
Test sand (or talc) dosage | 2kg/m³ | |
Extreme pressure of Vacuum pump | 2pa | |
Air pressure | 0.5~1.0Mpa | |
Sample rack height adjustment range | 0~750MM | |
Timing range | 0~99 hours 59 min | |
Timing accuracy | ±1min | |
Load cycle control | 0~99 hours 59 min | |
Ash blowing cycle control | 1s~9999 min | |
Sand and dust concentration | 2～4kg/m3 | |
Air flow speed | ≤2m/s | |

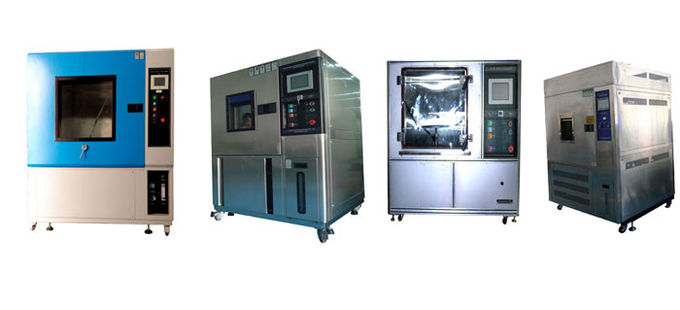

The inner size of the sand and dust test chamber can be customized according to customer's test samples, except 1 cube chamber, We also offer 80L, 150L, 225L, 408L, 800L ones. For walk-in test chambers, we support on-site installation and Commissioning.
Internal Dimensions WxHxD (cm) | 40x50x40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x80 | 100x100x100 |
External Dimensions WxHxD (cm) | 90x137x95 | 100x147x105 | 100x162x115 | 110x172x130 | 130x182x130 | 150x187x150 |
Our waterproof and dustproof environmental test equipment are used for evaluating the effect of environment on devices, the effect of environment on devices include high and low temperature, humidity, salt spray, sand and dust, water and etc., to ensure the safety performance of the device on the environment. Such sand and dust test chamber, temperature and humidity test chamber, salt spray tester, IPX waterproof degree test device and etc.
Each of your and your customer's requirements can be fulfilled here!
IEC&ISO Test Equipment
Battery Testing Equipment IEC62368 Test Equipment
Automobile testing equipment IEC62087 Energy efficiency test equipment
IEC standardsIEC 60065 Test Equipment
IEC 60238 Test Equipment
IEC 60335 Test Equipment
IEC 60529 Test Equipment
IEC 60598 Test Equipment
IEC 60884 Test Equipment
IEC 61058 Test Equipment
IEC 60309 Test Equipment
IEC 62087 Test Equipment
ETC...
FAQ
1) Why choose us?
Customized Services
To fulfill the diversified needs for clients, we gain experience of research and achieve flexible production.
Standard Mastery
Extensive experiences of customized business and understanding of each standard.
Thorough Services
Serving with a grateful, professional and honorable attitude, we established our own independent service branch to provide you with long-term value adding services.
Experienced R&D Team
Extensive experiences of Research and Development for mechanics, electronics, optics, thermology, IT technology and customer services.
Overall Matching
Solutions provider for laboratories based on standards or functions required.
KingPo Technology Development Limited is engages and specialized in testing equipment with good quality and pretty competitive prices for more than 10 years, belonging to the high-tech enterprises. We always pursue the perfection with you.
2) What kind of your corporation?
We're the China testing machine manufacturer and trader.
3) What's your delivery time?
Normally, it is 10-40 days according to the unload port.
