Max 1000A Lithium Battery Testing Equipment Short Circuit Tester
KP 8102 Battery Short Circuit Tester
Standard
It is conforms to IEC62133 clause 7.3.2 ,8.3.1,8.3.2 IEC60086-4 clause 6.5.1 IEC60086-4 clause 6.5.8 6.5.9 ,IEC 60086-1 ,IEC61951,IEC61960, UN38.3 ,UL1642, UL2054, QC 743/744, MT/T 1051-2007,GB/T 2900.11-1988,GB31241-2014and etc.
Feature:
High current contactor | (1) remotely connect and disconnect DC operational voltage to 220V； (2) rated operational current 1000A;equipped with series clay magnetic blowout cover and system (3) electromagnetic system and main contact arc-extinguishing system are fixed on bottom; main contact is made of red copper;low contact resistance,rapid reaction speed； (4) Reliable and safe;long service life and convenient maintenance； |
Remote controller | (1) long distance wireless control； (2) reliable and stable;auto lock and interlock; anti-interference and long service life； |
Voltmeter | (1) measurement voltage:0-100V； (2) display accuracy:F.S ±0.2% rdg ±1digit； (3) motion:double integral |
Ammeter | (1) measurement current:0-1000A DC one level； (2) display accuracy:F.S±0.2% rdg±1digit； (3) motion:double integral |
Basic Configuration | Consist of high current contactor,remote controller,voltmeter,ammeter,etc (2) accessories,special tool,spare parts,etc |

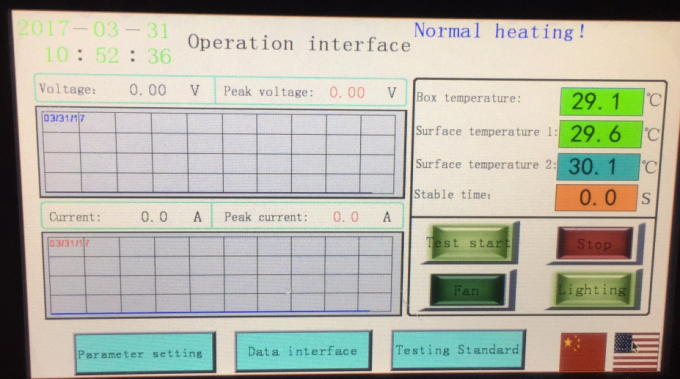

Touch screen interface(English) |
|
USB Interface | export data via USB |
Technical Parameter: | |
1 max short circuit current | 1000A |
2 resistance | 80±20 mΩ |
3 Control Distance | no solid barrier7m |
4 mechanical life | 300,000 times |
5 Electrical life | Resistive load 50,000 times |
6Temperature Range | room temperature +10℃~ 80℃(meet test condition of 55℃±5℃ and 25℃±5℃) |
7 Temperature fluctuation | ±1℃ |
8 Temperature deviation | ±2℃ |
9 Internal dimension | W600 X D500 X H600mm |
10 Internal material | 304# stainless steel(thickness 1.0mm) |
11 External dimension | W940XD780XH1620 mm |
12 External material | cold rolled plate baking varnish(thickness 1.0mm,total thickness of internal chamber 100mm) |
13 Observation window | 390 X 360mm(20mm thick toughened explosion-proof glass) |
14 Light design | highlighted energy-saving lamp |
15 test hole | 3 holes(diameter :φ50mm) ;3 stainless steel covers;3 silicone plugs |
16 pulley | easy to move with strengthening screw bolt |
17 heating system | Fin Type Heat Dissipation tube nickel-chrome U-type high efficiency heater |
18 circulation system | stainless steel lengthened axis ;moisture proof and Heat Dissipation sirocco fan; |
19 air-deflector | Can adjust up and down,left and right;to ensure uniform distribution of temperature |
20 Exhaust System | On the back of equipment;can make waste gas exhaust through it |
21 Power supply; | AC220V 50HZ |
22 Power | 3.0KW |

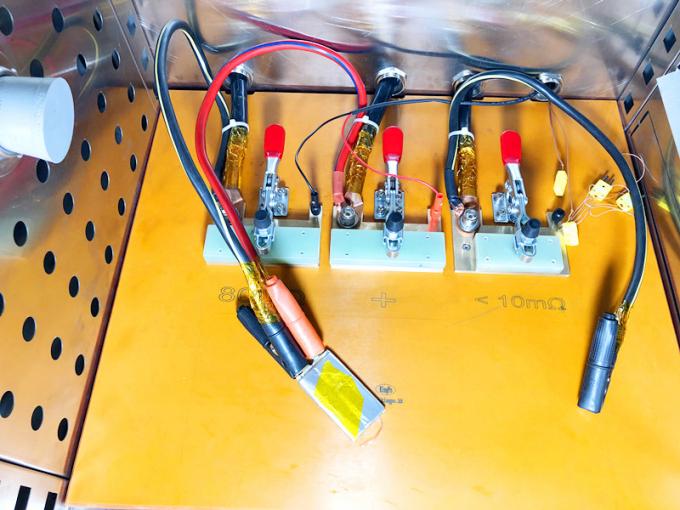

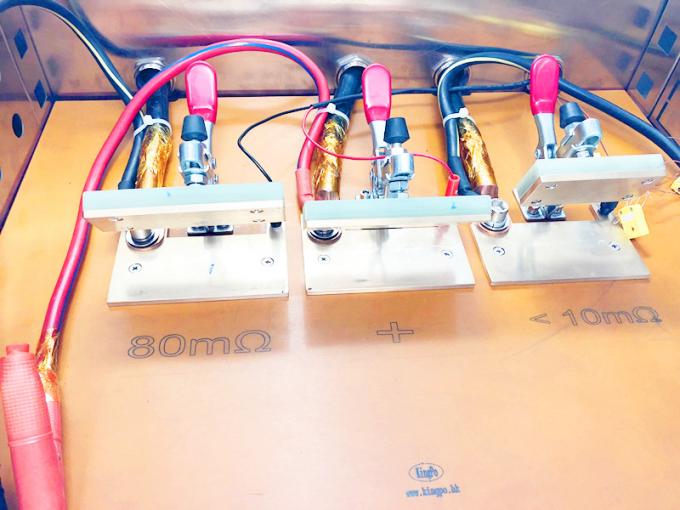

Operation room

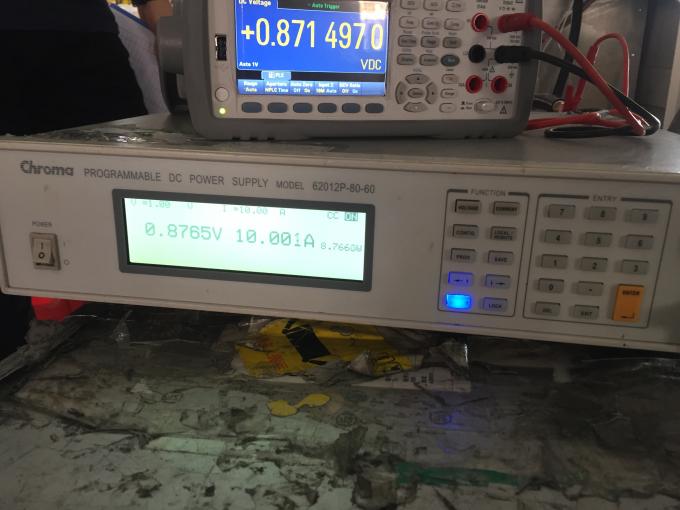

Resistance calibration
The temperature calibration
Installation
1. Operation condition requirement: temperature-10℃~100℃ humidity 10~90% with no condensation
2. Other:locate the machine on a plane table with certain intensity.
3. Test requirement:
(1) install a battery in explosion proof box(standard)
(2) Independent cement room,has observation window for monitoring and controlling (customer self-prepare)
4. Power:AC 1φ 3W 220V

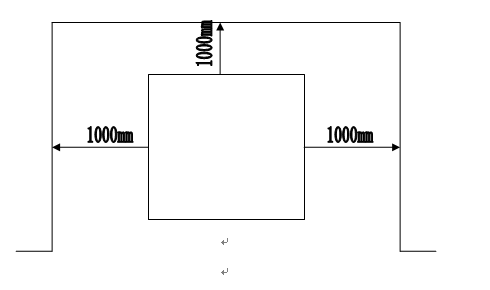

5. Installation site(suggestion):
|
|
