    IEC60335 Electrical Safety Testing Probe Pin For Scratch Resistance Test

    IEC60335 Electrical Safety Testing Probe Pin For Scratch Resistance Test


    IEC60335-1 Clause 21 Scratched Pin For Scratch Resistance Test Of The Electrical Solid Insulation Surface


    Product information:

    The test pin is used to do the scratch resistant test of the electrical solid insulation surface. It conforms to the standard requirement of IEC60335-1 clause 21.

    Test method: make sure the angle between the pin and the surface of the sample is 80-85°. Then use the pin which is loaded with the axial force of 10±0.5N to scratch the surface of the sample at a speed of approximately 20mm/s. This test pin can be equipped with 20N weight to reach the load of 30N.This scratched pin shall be used with resistance scratching tester.


    Standard:IEC60335-1 clause 21 and IEC60950-1.


    Application:The test pin is used to do the scratch resistant test of the electrical solid insulation surface.


    Test sample:Home appliance fixed insulation accessible part and coated printed board.


    Feature:Test method: make sure the angle between the pin and the surface of the sample is 80-85°. Then use the pin which is loaded with the axial force of 10±0.5N to scratch the surface of the sample at a speed of approximately 20mm/s. This test pin can be equipped with 20N weight to reach the load of 30N.This scratched pin shall be used with resistance scratching tester.


    Technical parameters:

    Model

    HT-I34

    Pin head

    A cone with the angle of 40°

    Tip is rounded with a radius

    0.25mm±0.02mm

    Mass

    10±0.5N

    Material

    Quenched steel

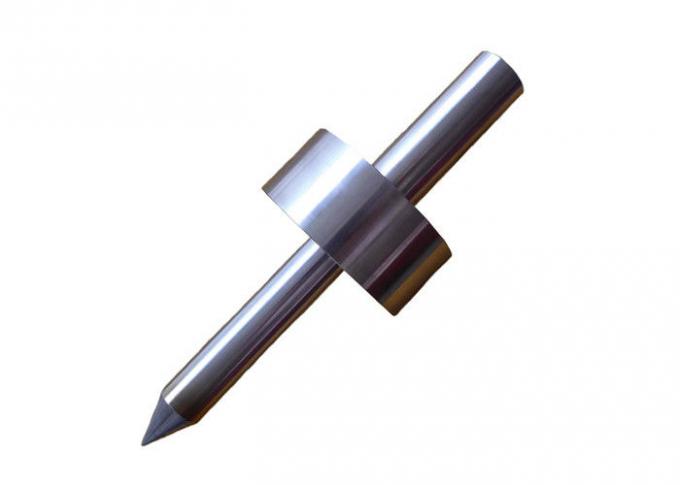

    Scratch Resistant Pin Electric Safety Testing Probes IEC60335-1 clause 21 0
