    IEC60598 Stainless Steel Testing Equipment For Lampholder Contacts

    Ask Lasest Price
    Brand Name : KingPo
    Certification : ISO 17025 Calibration certificate
    Price : To be quoted
    Delivery Time : 20~25 working days
    Payment Terms : 100% TT in advance
    Supply Ability : 3~5 units per month
    • Product Details
    • Company Profile

    IEC60598 Stainless Steel Testing Equipment For Lampholder Contacts

    IEC60598 Stainless Steel Testing Equipment For Lampholder Contacts

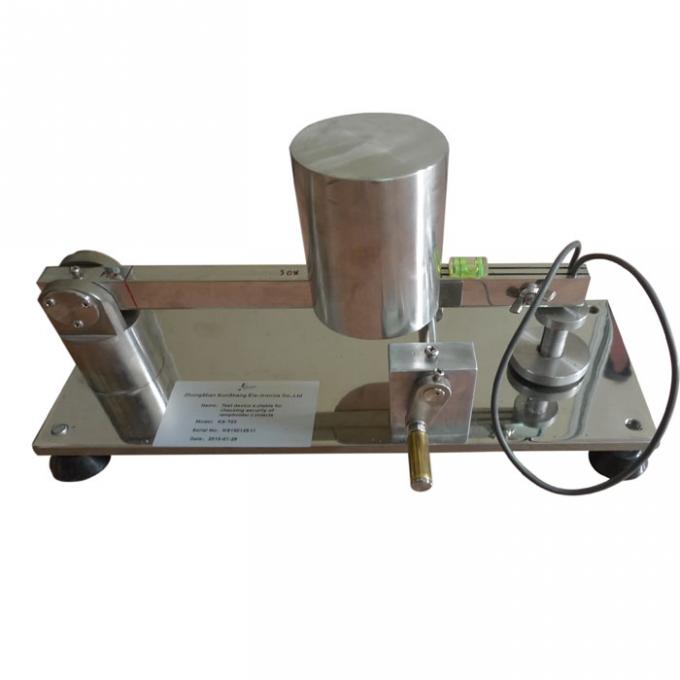

    Contacts Security Thrust Test Device


    Product information:

    The test apparatus is used to check security of lampholder contacts, avoid the lamp holder contacts shifting and the live parts of the lamp string becoming accessible which are caused by the frictions.


    Technical parameters:

    The test device is conform to the IEC60598-2-20 clause 113,Fig 2.

    It is made of stainless steel.

    Weights: one 15 N and one 30 N


    Test method:

    The incandescent lamp is removed and a force of 15 N is applied for 1 min to each of the conductors connected. Following this, a force of 30 N is applied for 1 min to the two conductors together. The forces are applied at a distance of 3 ± 0,8 mm from the insertion points in the lampholder so as to try to move the contacts from the lampholders. During the test the contacts shall not move more than 0,8 mm.


    Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20 0
