Face Edge Corner Drop Test Machine For Mobile Batteries Interphone
Battery Drop Test Machine
Standard
IEC62133 clause 7.3.3 ,8.3.3 ,IEC60086-4 clause 6.5.4 ,IEC 60086-1,
GB31241-2014 and etc .
Applications
This machine applies for small consumer electronic products like
mobile phone, mobile batteries, interphone,electronic dictionary
,CD/MD/MP3 etc. and components free dropping testing. Specimen
automatically lifting to pre-setting height, then free drop and
shock on the drop plate.
Parameters
| 300～1500mm(Controllable, steel ruler ,min.indication value :1mm) |
|
|
| 0～5kg |
|
|
|
|
| W600 x D700 x H10mm(solid plate) |
|
|
|
|
|
|
|
|
|
|
| 220V 50Hz |
| With 500MM height rail |
| ＜1mpa |
|
|
Features
This machine available for package face, corner, edge free drop testing
With height digital display instrument and tracing height with encoder, so can measure the precision drop height.
The drop height tolerance within2% or 10mm；

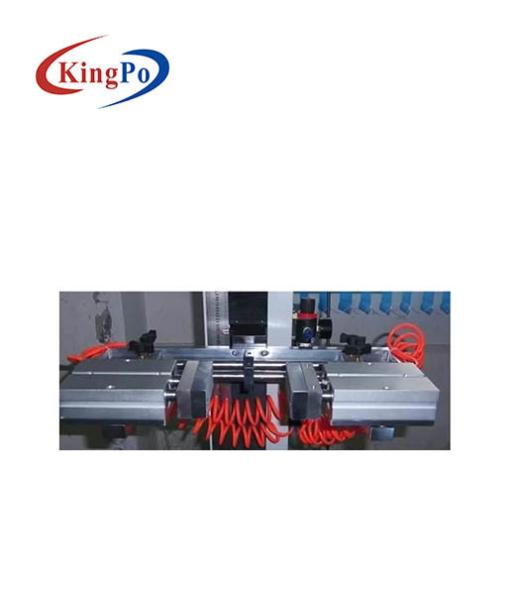

Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping . The drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards
Notice
This machine control cabinet with 220V power, non professionals shall not open the cabinet and disassemble the components .
This machine used for material testing, prevent for people standing
The machine should be placed on flat floor, and keep machine dry and clean .
After finish testing, low down the arm, and cut off the power supply
Do not cut off power when testing .
