    Double-Layered High Low Temperature Chamber

    Ask Lasest Price
    Brand Name : KingPo
    Certification : ISO 17025 Calibration certificate
    Price : To be quoted
    Delivery Time : 25~30 working days
    Payment Terms : 100% TT in advance
    Supply Ability : 3~5 units per month
    • Product Details
    • Company Profile

    Double-Layered High Low Temperature Chamber

    Product Details

    IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber

    Standard

    IEC60068-2-1:2007 low temperature testing, IEC60068-2-2:2007 high temperature testing,GJB150.3-1986 high temperature testing, GJB150.4-1986 low temperature testing.


    Application

    It can accurately simulate complex natural environment such as low temperature, high temperature, high temperature and low temperature. It is suitable for electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals,chemicals, building materials, research institutes, inspection and quarantine bureaus, universities. And other industry units for quality control testing.


    Performance Parameters


    ModelHB6213HB6213A
    Single-layer inner box sizeW600 X D700 X H600MMW800 X D600 X H600MM
    External SizeW1300 X D1800 X H1950MMW1500 X D1950 X H1700MM
    Structural pattermThe test chamber is designed as a monolithic upper and lower box structure
    Temperature fluctuation

    ±0.3℃


    Heating rateAverage 1-3℃/minute(non-linear no-load
    Cooling rateAverage 1.0℃/minute Full course(non-linear no-load
    Temperature range-40℃-150℃
    Temperature uniformity≤±2℃(at no load,constand state)
    Observation windowW300 X H400MM,There-layer vacuum tempered glass
    Test terminal12 sets of terminals are connected to the test cabinet inside and outside of the chamber
    Cooling methodAir cooling/water cooling
    compressorTecumseh(Franch)Bock (Germany)
    Controlling methodTouch screen programmable control PLC, with USB interface, with RJ485.interfaca can be computer control, special network control software, convenient remonte monitoring, data acquisition
    Internal chamber materialSUS304#mirror stainless steel,1.0mm thick, sprayed with Teflon insulation
    External chamber materialGalvanized sheet. dusting, high temperature plastizing,1.2MM thick
    VoltageAC380V 50HZ 12KWAC380V50HZ 14KW
    Safety protectionAutomatic explosion-proof pressure relief device, explosion-proof chain,tri—color light alarm device, remote control, smoke exhaust device, fire extinguishing device,etc.
    Extension functionDevelopment of communication protocol and supporting use of charge and discharge machine.

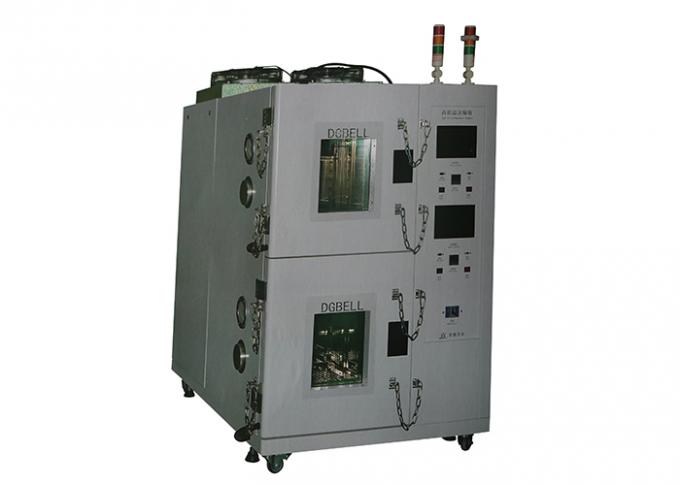

    IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber 0
