IEC60529 IPX1 IPX2 IPX3 IPX4 Rain Test Chamber For Electrical Product
IPX1 IPX2 IPX3 IPX4 Rain Test Chamber
Product introduction:
This integrated IPX1 IPX2 IPX3 IPX4 testing chamber is suitable for the testing electrical products' enclosures and sealed parts performance in the rain environment, whether they can ensure the good performance of equipment and components. The equipment can be realistically simulated water dripping , water spraying, water splashing etc. The comprehensive control system and the frequency conversion technology makes the swing angle and the swing frequency of the oscilating tube can be adjusted automatically.
IPX1/2 IPX3/4 waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment can achieve IPX1, IPX2, IPX3, IPX4 waterproof degrees testing purposes, which are widely adopted by electrical and electronic products certification institutions, testing organizations and production enterprises.
Technical Parameters:
Inner Chamber | 800mm*800mm*900mm |
Outer Chamber | 1150mm*1450mm*1900mm |
Rotating speed(rpm) | 1 ~5 adjustable |
Turntable Diameter | 400 mm |
Turntable Height | 200 mm, it is adjustable |
Dripping hole | 0.4 mm |
Dripping area | 600X600 mm |
Dripping Height | 120 mm |
Oscillating tube radius | 200 mm or 400mm or customized |
Swing angle range of the oscillating tube | ±60°,±180° |
Needle hole | φ0 .4 mm |
Distance between holes | 50 mm |
Water flow of each hole | 0.07 L/min +5% |
Spray pressure | 80-150Kpa |
Swing angle | Max.±150° |
HongCe has various of waterproof testing equipment based on the requirements of IEC 60529 standard, we can also offer customized ingress protection testing equipment or systems according to client's specific products or testing requirements.
HongCe IPX1~9 waterproof test system includes following:
1. Vertical Drip Rain Testing Machine : It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2
2. Oscillating Tube Tester for IPX3 and IPX4, Spray Nozzle : It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX3 and IPX4
3. Handheld Jet Nozzle: It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX5 and IPX6
4. Smart Water Supply And Control System: This smart water supply and control system is applicable to:
(a) Water supply for IPX1~IPX6 waterproof test
(b) IPX7 water immersion test
(c) Water storage for IPX8 water tightness test
(d) Automatic control for the whole waterproof equipment

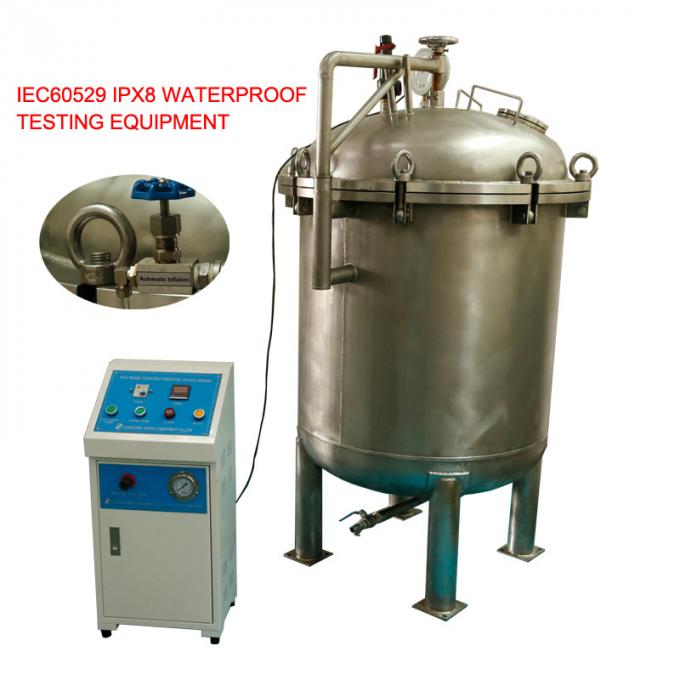

5. IPX8 Water Tightness Pressure Tester: It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX8.

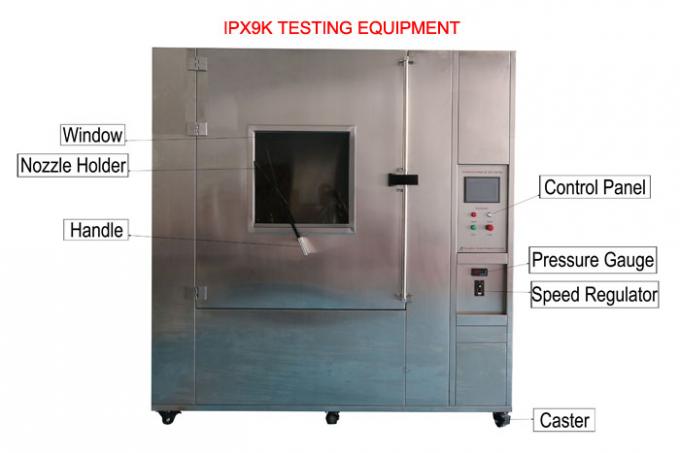

6. High Temperature & Pressure Jet Waterproof Test Chamber: It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX9.
Please click the link IEC60529 waterproof testing equipment.pdf to get the whole sets of waterproof testing equipment list .
